Providing Standard, Customized and heavy duty Pressure switch and Temperature Switch with Quality Assurance
Gulf Oil & Gas International Welcomes you to explore the broad range of Industrial Field instruments, Process Instruments (Gauge,Level Indicators, Switches, Transmitters, FlowMeters), Test and Measurement Equipment, and Process Control Equipments of international brands( PI control Europe, Gems, ESI, Krohne, ABB, Honeywell, Dwyer, and others).We offer All Types Of Pressure Switch and Temperature Switch .We are specialized in Customized pressure switch, Weather proof Pressure Switch, Flame Proof Pressure Switch,Customized Temperature switch, Gas filled Temperature switch. We have years of experience and a skilled team to understand and execute standard and customized solutions to all your requirements. We are committed to offering you the best quality at the most competitive price.
Pressure Switch - Standard
PI-S101
Commercial pressure switch
Pressure Switch - Standard
- Repeatability :± 2% F.S.
- Sensing Elements :Phosphor Bronze Bellow
- Switch :1 SPDT, 15A,220 VAC / 10A,24 VDC
- Mounting :Bottom / Panel
- Enclosure Material :Steel (plated) with Plastic cover
PI-S102
Weatherproof pressure switch, adjustable differential
Pressure Switch - Standard
- Repeatability :± 2% F.S.
- Sensing Elements :Phosphor Bronze / Stainless Steel Bellows
- Switch :1 SPDT, 15A,220 VAC / 10A,24 VDC
- Mounting :Bottom / Panel
PI-S103
Miniature pressure switch
Pressure Switch - Standard
- Repeatability :± 2% F.S.
- Sensing Elements :SS Diaphragm
- Switch :1 SPST, 5A,220 VAC / 10A,24 VDC
- Mounting :Direct
- Enclosure Material :Stainless Steel
PI-S104
Miniature pressure switch, internal adjustment
Pressure Switch - Standard
- Repeatability :± 1% F.S.
- Sensing Elements :SS 316 Diaphragm
- Switch :1 SPDT, 5A,250 VAC / 0.2A,24 VDC
- Mounting :Bottom / Panel
- Enclosure Material :Aluminum pressure die cast
PI-S105
Miniature pressure switch, OEM industry
Pressure Switch - Standard
- Repeatability :± 1% F.S.
- Sensing Elements :SS Diaphragm
- Switch :1 or 2 SPDT, 5A,220 VAC / 10A,24 VDC
- Mounting :Direct
- Enclosure Material :Stainless Steel
Pressure Switch - Weather proof series
PI-S201
Weatherproof pressure switch, high accuracy & repeatability type
Pressure Switch - Weather proof series
- Repeatability :± 0.5% F.S.
- Sensing Elements :AISI 316 SS, Diaphragm
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
PI-S202
Differential pressure switch
Pressure Switch - Weather proof series
- Repeatability :± 0.5% F.S.
- Sensing Elements :AISI 316 SS, Diaphragm
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
- Enclosure Material :Aluminum pressure die cast

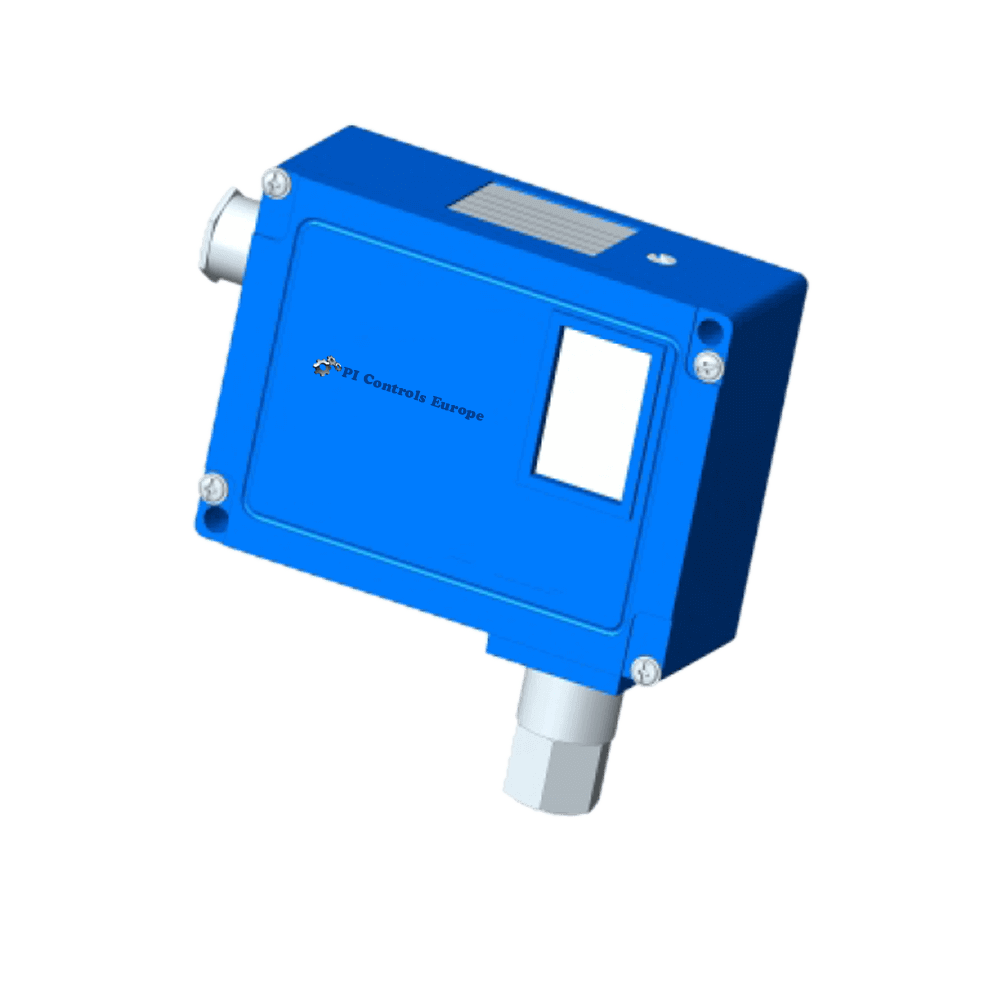

PI-S203
High pressure switch
Pressure Switch - Weather proof series
- Repeatability :± 1% F.S.
- Sensing Elements :AISI 316 SS, Piston
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
- Enclosure Material :Aluminum pressure die cast
Pressure Switch - Flame proof series
PI-S301
Flame proof pressure switch, high accuracy & repeatability
Pressure Switch - Flame proof series
- Repeatability :± 0.5% F.S.
- Sensing Elements :AISI 316 SS, Diaphragm
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
PI-S302
Flame proof differential pressure switch
Pressure Switch - Flame proof series
- Repeatability :± 0.5% F.S.
- Sensing Elements :AISI 316 SS, Diaphragm
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Standard)
- Mounting :Bottom / Panel
PI-S303
Flame proof high pressure switch
Pressure Switch - Flame proof series
- Repeatability :± 1% F.S.
- Sensing Elements :AISI 316 SS, Piston
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
- Enclosure Material :Aluminum pressure die cast
Temperature Switches
Temperature - Switches - Gas filled systems
PI-T703
PI Controls Europe - Industrial thermometer, with electrical contact
Switches - Gas filled systems
- Dial size :DN100/DN150
- Range :-100…800°C
- Stem size :6.0 mm to 12 mm
- Assembly :Direct or Remote
PI-T704
PI Controls Europe - Temperature switch, weatherproof
Switches - Gas filled systems
- Repeatability :± 2% F.S.
- Sensing Elements :AISI 316 SS
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Direct / Remote
PI-T705
PI Controls Europe - Temperature switch, ex-proof
Switches - Gas filled systems
- Repeatability :± 2% F.S.
- Sensing Elements :AISI 316 SS
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Direct / Remote
PI-T708
PI Controls Europe - Industrial thermometer, with electrical contact, Dome style
Switches - Gas filled systems
- Dial size :DN100 / DN150
- Range :-100…800°C
- Stem size :6.0 mm to 12 mm
- Assembly :Direct or Remote
Industries We Serve
- Oil & Gas Sector
- Chemical Industry
- Pharmaceutical Industry
- Water Treatment Industry
- Paper Pulp industry
- Fertilizer Industry
- Food Processing Companies
- Engineering Works
- Fabricators
- Shipbuilding & Marine
- Steam & Power Generation
- Refrigeration & Air Conditioning
