Hyflex 6X36

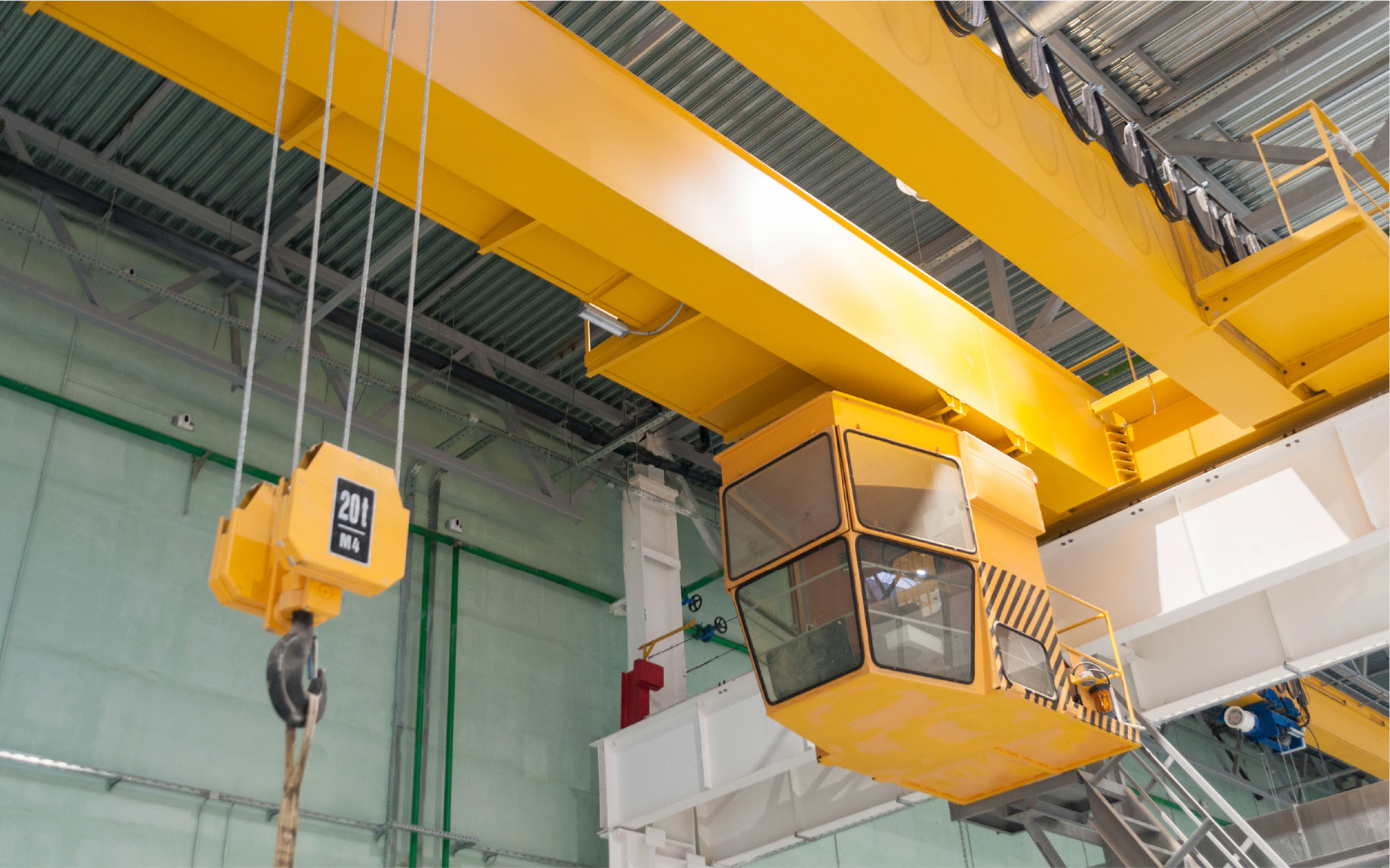

- High quality flexible 6x36 class crane rope.
- Consistent performance.
- Fully lubricated in manufacturing.
- Independent wire rope core.
- Supplied in high strength 1960N/mm² tensile steel as standard.
Hyflex 6X36
| Standard Characteristics Hyflex 6X36 | ||
| Compacted | Yes | No |
| ■ | ||
| Grade | 1770 | 1960 |
| ■ | ||
| Finish | Bright | Galvanised |
| ■ | ■ | |
| Lay Direction | Right Hand | Left Hand |
| ■ | ■ | |
| Lay Type | Ordinary | Langs |
| ■ | ||
| Nominal Fill Factor | 0.609 | |
| Turn value at 20% of Breaking force degrees/ ‘6.5d’ | 56 | |
| Discard Criteria | Refer to ISO 4309:2019 | |
Warning: Hyflex 6x36 in Langs lay must only be used in applications where both ends are unable to rotate.
| NOMINAL ROPE DIAMETER | APPROX. MASS | MINIMUM BREAKING FORCE | ||||
| GALVANISED & UNGALVANISED | ||||||
| ROPE GRADE | ||||||
| 1770 | 1960 | |||||
| mm | in | kg/100m | kN | tonnes | kN | tonnes |
| 8 | 26.1 | 40.3 | 4.1 | 44.7 | 4.6 | |
| 9 | 33.2 | 51.0 | 5.2 | 56.5 | 5.8 | |
| 10 | 40.8 | 63.0 | 6.4 | 69.8 | 7.1 | |
| 11 | 49.4 | 76.2 | 7.8 | 84.4 | 8.6 | |
| 12 | 58.8 | 90.7 | 9.2 | 101 | 10.3 | |
| 1/2 | 66.0 | 102 | 10.4 | 113 | 11.5 | |
| 13 | 69.2 | 107 | 10.9 | 118 | 12.0 | |
| 14 | 80.2 | 124 | 12.6 | 137 | 14.0 | |
| 16 | 5/8 | 104 | 161 | 16.4 | 179 | 18.3 |
| 18 | 132 | 204 | 20.8 | 226 | 23.0 | |
| 20 | 163 | 252 | 25.7 | 279 | 28.4 | |
| 22 | 197 | 305 | 31.1 | 338 | 34.5 | |
| 7/8 | 201 | 311 | 31.7 | 345 | 35.2 | |
| 24 | 15/16 | 235 | 363 | 37.0 | 402 | 41.0 |
| 1 | 263 | 407 | 41.5 | 450 | 45.9 | |
| 26 | 276 | 426 | 43.4 | 472 | 48.1 | |
| 28 | 320 | 494 | 50.4 | 547 | 55.8 | |
| 32 | 1.1/4 | 418 | 645 | 65.8 | 715 | 72.9 |
| 36 | 531 | 817 | 83.3 | 904 | 92.2 | |
| 40 | 655 | 1010 | 103 | 1120 | 114 | |
| 44 | 793 | 1220 | 124 | 1350 | 138 | |
| 48 | 1.7/8 | 943 | 1450 | 148 | 1610 | 164 |
| 52 | 1111 | 1700 | 173 | 1890 | 193 | |
| 56 | 1281 | 1980 | 202 | 2190 | 223 | |
| 60 | 2.3/8 | 1471 | 2270 | 231 | 2510 | 256 |
Note: Rope Sizes and Breaking Force not shown in the standard table, may be available on request and prior confirmation.
